2023 Martin Custom Shop D-45 VTS Adirondack Spruce & Cocobolo #2702444

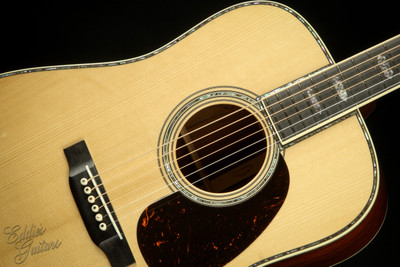

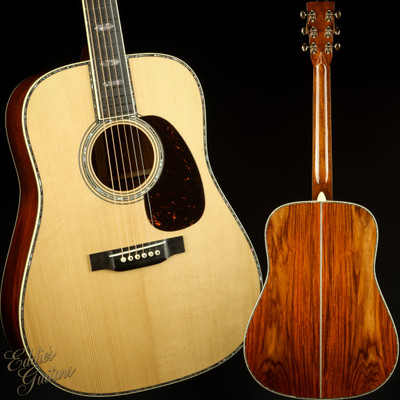

The Martin Custom Shop D-45 VTS is an exceptional, one-of-a-kind dreadnought that brings together premium tonewoods, vintage-inspired construction, and the extraordinary level of detail expected from Martin’s Custom Shop. At the heart of this instrument is a Premium Grade 7 Adirondack Spruce top treated with Martin’s Vintage Tone System (VTS), paired with beautiful Cocobolo back and sides. This combination produces the powerful projection, headroom, clarity, and dynamic response associated with Adirondack Spruce, while the Cocobolo body contributes warmth, richness, sustain, and impressive harmonic complexity.

The top is supported by Golden Era-style, scalloped 5/16" Adirondack Spruce bracing in a carefully selected construction designed to maximize the instrument’s responsiveness and tonal power. The traditional D-14 fret body and dovetail neck joint are complemented by a genuine Mahogany neck with Martin’s Performing Artist profile, a 25.4" scale length, 1 3/4" bone nut, and 16" radius ebony fingerboard. A 1930-style ebony belly bridge with a long drop-in bone saddle and 2 3/16" string spacing provides a classic foundation for excellent sustain, articulation, and resonance.

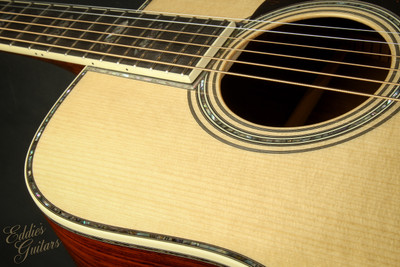

As a Custom Shop D-45, the visual appointments are truly spectacular. Antique White Boltaron binding surrounds the body, headplate, and fingerboard, while extensive Style 45 mosaic purfling and select abalone pearl work adorn the top, back, sides, endpiece, and fingerboard. The 45-style Marquis rosette features intricate fiber and abalone detailing, and the top is finished with an elegant faux tortoise pickguard. The black ebony fingerboard carries Style 45 hexagonal select abalone inlays, while the Cocobolo headplate features a select abalone C.F. Martin block logo. A Cocobolo body and headplate, East Indian Rosewood side strips, and a distinctive Style 45 wedge endpiece further showcase the meticulous craftsmanship of this instrument.

Additional premium appointments include Schaller Gold GrandTune tuning machines with figured buttons, white bridge pins and end pin with Paua pearl dots, a genuine Mahogany neck with two-way adjustable truss rod, and Martin’s authentic C.F. Martin & Co. Nazareth, PA stamp on the back of the headstock. The entire instrument receives a full-gloss finish, with the body finished in polished lacquer over a rosewood filler package. Weighing just 4 lbs. 11 oz., this Martin Custom Shop D-45 VTS is an extraordinary combination of tone, projection, craftsmanship, and visual elegance. It comes complete with its hard case and represents a truly special interpretation of one of Martin’s most prestigious dreadnought designs.

Other specifications include:

• Construction: Standard; Mahogany Blocks/Dovetail Neck Joint
• Body Size: D-14 Fret
• Top: Adirondack Spruce - Vintage Tone System (VTS)(PREMIUM)
• Top Grade: 7
• Top Braces: Adirondack / Scalloped 5/16" / Golden Era
• Pattern: DOMLE #3A
• Top Binding: Antique White Boltaron
• Top Inlay: Style 42 - 042'' B/M/B Fiber/.066'' Poly/.042'' B/M/B Fiber
• Top Pearl: Style 42- .064'' Select Abalone
• Additional Top Inlay: None

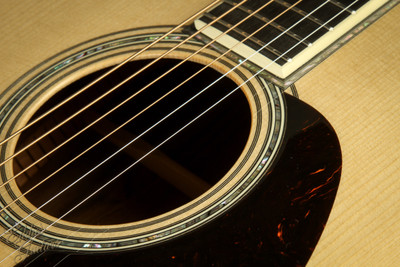

• Rosette: 45 Style Marquis
• Pearl Inlay: .064'' Select Abalone - 5 Piece
• Additional Ros. Inlay: Antique White Boltaron & Wood fiber inlays - Black / Maple
• Pickguard: Faux Tortoise 3071, Self-Ad, Pattern 20B (D45 w/ Fiber Inlays)
• Pearl Inlay: None

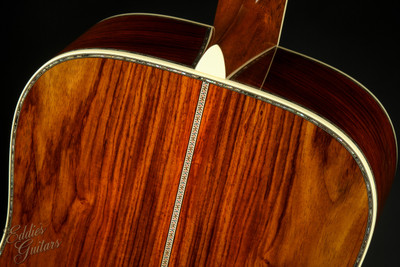

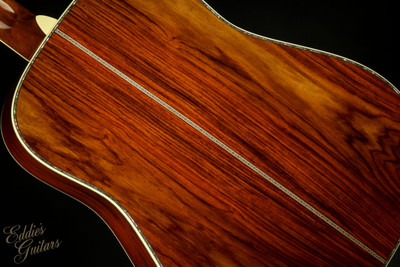

• Back: Cocobolo ( Sand to .095'' )
• Back Panels: 2 Pc.
• Purfling: Style 45 Mosaic Pattern w/ Thick Black Strip on Each Side, #445B
• Center Strip/Loc. Stamp: Sitka Spruce Standard(CF Martin & Co Nazareth PA Between 1st/2nd Brace)
• Caution Stamp: None
• Back Braces: Sitka Spruce
• Back Binding: Antique White Boltaron
• Back Inlay: 042" B/M/B Fiber/.050" Poly/.042" B/M/B FiberBACK PEARL: .047'' Select Abalone

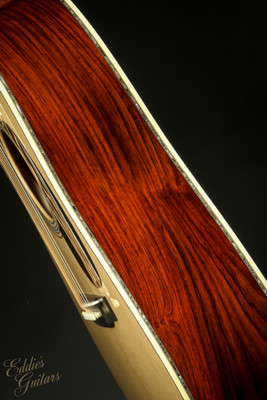

• Additional Back Inlay: NoneSIDES:Cocobolo ( Sand to .065'' )SIDE INLAY: .042'' B/M/B Fiber /.050'' Poly/ .042'' B/M/B Fiber
• Side Pearl: .047'' Select Abalone
• Additional Side Inlay: None
• Side Strips: East Indian Rosewood
• Endpiece: Antique White Boltaron - 45 Wedge
• Endpiece Inlay: .042'' B/M/B Fiber/ .050'' Poly/ .042'' B/M/B Fiber
• Endpiece Pearl: Style 45- Select Abalone Pearl (Mitered Corners)
• Additional ep Inlay: None
• Block: Solid Genuine Mahogany
• Tag/Plate: None
• Rear: D Mahogany
• Front: D 14 Fret Adjustable Mahogany
• Neck: Genuine Mahogany- 12/4
• Neck Shape: Performing Artist neck profile
• Headstock: Solid/6 String Diamond/SquareTaper
• Back/Head Stamp: C.F. Martin and Co. Nazareth Pa. Stamp On Back Of Head (AUTHENTIC FEATURE)
• Truss Rod: 2-Way Adjustable 356mm
• Heelcap: Antique White Boltaron NUT: Bone
• On Angle/Flat: Flat
• Headplate: Cocobolo
• Headplate Decal:None
• Headplate Bind: Antique White Boltaron
• Headplate Inlay: .042" B/M/B Fiber

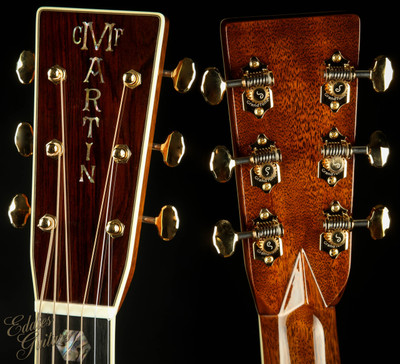

• Headplate Pearl: C.F. Martin Block, Select Abalone (GE)
• Additional hp Inlay: None
• Tuning Machines: Schaller,Gold,GrandTune,Fctd BB Btns (Drill 11/32'')
• Fingerboard: Black Ebony (Stain- Yes, Oil- Yes)
• Radius: 16''
• Scale Length: 25.340'' (25.4'')
• Width at Nut: 1 3/4''
• Width at 12 Fret: 2 1/8''
• Fret Wire: G-300
• Frets Clear: 14
• Total Frets: 20
• Fingerboard Bind: Antique White Boltaron
• Fingerboard Inlay: None

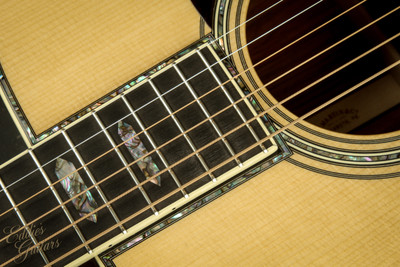

• Pearl Inlay: Style 45 Hex- Select Abalone
• Additional fb Inlay: None
• Side Dots: Black Boltaron
• Side Dot Postions: One at 3rd, 5th, 7th, 9th, Two at 12th, One at 15th & 17th Frets
• Finish Type:Full Gloss
• Finish Body:- ICA Polished Lacquer Complete/ Rosewood Filler Package
• Finish Top:Non-Catalyzed Gloss/ Clear
• Finish Neck: Non-Catalyzed Gloss / 144 Maple Stain / Rosewood Filler

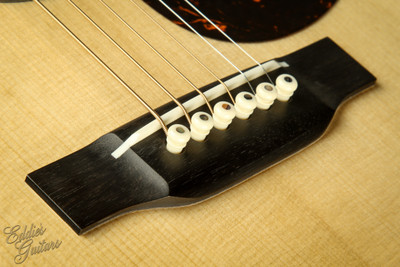

• Bridge: Black Ebony
• Style: 1930 Style Belly w/ Drop-In Long Saddle
• Pearl Inlay: None
• Additional br Inlay: None
• String Spacing: 2 3/16''
• Saddle: 16'' Radius, Long, Drop in, Bone
• Electronics: None
• Strap Button: None
• Strings: Strings,Martin,MSP4200,Guitar Prod
• Bridge Pins:White w/ Paua Pearl Dots
• End Pin: White w/ Paua Pearl Dot

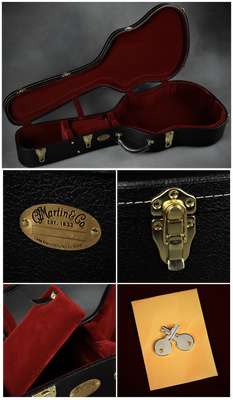

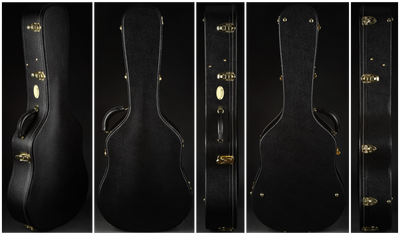

• Hard Case
• 4 lbs 11 oz
• #2702444

For more information about the Martin Custom Shop D-45 Cocobolo, please contact us.
