EVH Wolfgang USA Edward Van Halen Signature - Stealth Black #WG17586A

EVH brings you the Wolfgang® USA Edward Van Halen Signature model, loaded with Eddie Van Halen’s most up-to-date specs along with the classic looks and behemoth sound you’ve come to expect.

The basswood body features a big-leaf maple top and five-ply binding, while the bolt-on quartersawn maple neck is sculpted to Eddie’s precise specs, with graphite reinforcement and a hand-rubbed back finish for smooth, fast playability. The compound-radius (12”-16”) ebony fingerboard has 22 vintage stainless steel frets, pearloid (Ivory finish) or dot (Stealth finish) inlays, and a convenient heel-mounted truss rod adjustment wheel.

Experience scorching and well-balanced tone with a custom-wound alnico 2 EVH® Wolfgang® Humbucker in the bridge and a newly added alnico 3 custom-wound EVH® Wolfgang Humbucker in the neck, both controlled by a special reverse oriented three-way toggle switch. Stutter-stop à la “You Really Got Me” with the red-button killswitch and play “Cathedral” without any crackle or pop, courtesy of the EVH High Friction (Tone) Pot and an EVH “HPU” or High Performance Upgrade, custom-made Low Friction (Volume) Pot.

Sturdy and steadfast, the EVH-branded Floyd Rose® locking tremolo provides endless sustain and precise tuning regardless of how many dive bombs you rip or how drastically you attack your whammy-bar. The EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger, with a low-friction volume control for smooth swells and a high-friction tone control that prevents accidental tone shifting.

Boasts elegant and classic style in Ivory or Stealth with chrome hardware, black speed knobs and dog leash strap/eye-bolt clasps. Hardshell EVH Striped SKB case and EVH leather strap included.

Other specifications include:

• Model Number 5107920868
• Series Wolfgang® USA
• Color Stealth Black
• Number of Strings 6
• Orientation Right-Hand
• Body Finish Satin Urethane
• Body Shape Wolfgang®
• Body Material Basswood
• Body Binding 5-Ply
• Body Back Basswood
• Body Top Big Leaf Maple
• Bridge Pickup Direct Mount EVH® Wolfgang® Humbucking
• Neck Pickup Direct Mount EVH® Wolfgang® AL3 Humbucking
• Pickup Color Zebra
• Controls Volume (EVH® BI Tech HPU Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
• Pickup Switching EVH® Reverse-Style 3-Position Switching: Position 1: Neck Pickup, Position 2: Neck and Bridge, Position 3: Bridge
• Auxiliary Switching Kill Switch
• Pickup Configuration HH
• Neck Material Quartersawn Maple
• Neck Construction Bolt-On with Graphite Reinforcement
• Neck Thickness .805" at 3rd & .890" at 12th FretNeck Finish Hand-Rubbed Satin Urethane
• Neck Shape Wolfgang® Backshape
• Scale Length 25.5" (648 mm)
• Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material Ebony
• Number of Frets 22
• Fret Size Vintage Stainless
• Nut Material Floyd Rose® R2 Locking
• Nut Width 1.650" (42 mm)
• Position Inlays Pearloid Dot
• Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
• Truss Rod Wrench 2.5 mm Hex
• String Trees Floyd Rose® Retainer Bar

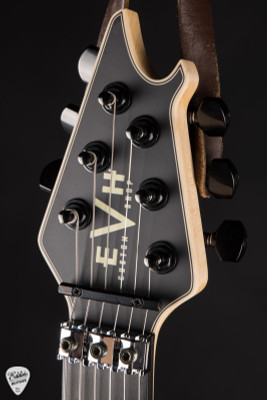

• Headstock EVH® Wolfgang®
• Bridge EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
• Hardware Finish Chrome
• Tremolo Arm Floyd Rose® 1000 Series Locking
• Tremolo Block Brass
• Tuning Machines EVH®-Branded Gotoh®
• Control Knobs Black Knurled with White Indicator
• Switch Tip Black
• Strings EVH® Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons Screw-Eye Hook
• Case/Gig Bag Included EVH® Wolfgang® Hardshell (p/n 009-0916-000); Optional EVH® Black Bag (p/n 022-1512-006)
• Included Accessories Tremolo Arm, Hex Keys & User Manual
• 8 lbs 2 oz
• #WG17586A

For more information about the EVH Wolfgang USA Edward Van Halen Signature guitar, please contact us.
