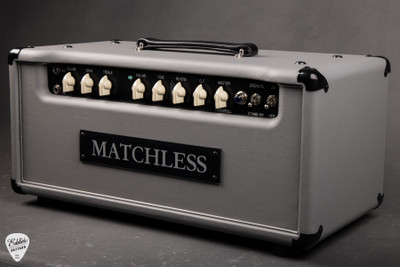

The Matchless HC-30 is an amplifier guitar head that has been proven to show versatility and durability- something that professional musicians told Matchless that was most important in a guitar amplifier. The two 12AX7's in Channel 1 create a parallel-triode circuit with interactive bass and treble. The one EF86 in Channel 2 consists of a high-gain pentode coupled to a six-position tone switch. The power amp uses a 12AX7 phase inverter, which powers four EL84 power tubes. Power and durability are in excess in this amp head. Versatility is defined in the array of tones produced. Matchless-made, musician-approved.
Other specifications include:
- Power: 30 Watts
- Channels: Two Channels

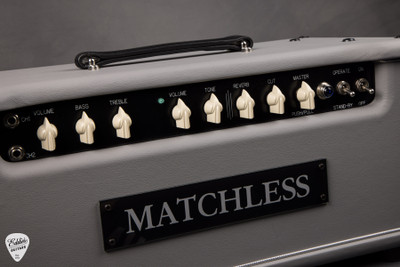

- Controls Ch.1: Volume, Bass, Treble
- Controls Ch.2: Volume, Tone, Cut control, Bypassable Master Volume

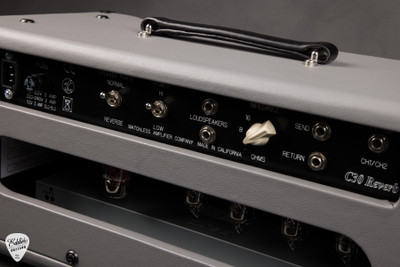

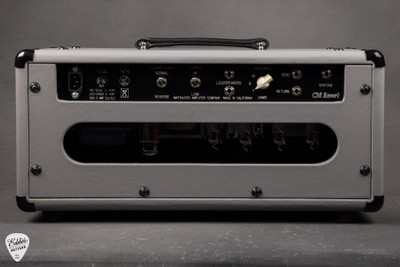

- Switches: Reverse Speaker Phase, Hi-lo power, 3 Position Rotary Impedance, 6 Position Rotary Tone
- Power Tubes: 4 x EL84
- Preamp Tubes: 1 x EF86, 3 x 12AX7
- Rectifier Tube: 1 x 5AR4 (standard) or 2 x 5V4G tubes
- Note on the Rectifier Tube: The one 5AR4 is used for sharper attack. Alternately, two 5V4G tubes may be used to roll off the attack and create more sag
- Features: Dual inputs for each channel, Effects loop
- Speaker Output: Switchable Impedance of 4, 8, and 16 Ohms
- 21.5 x 10.5 x 8.5
- 50 lbs
- #A22044
For more information about the Matchless HC30, please contact us.
- Manufacturer
- Matchless
- Condition
- Brand New
- Model
- HC-30
- Color
- Dark Gray/Silver
- Series
- HC-30
